Trailer Specification |
|
|
Type |

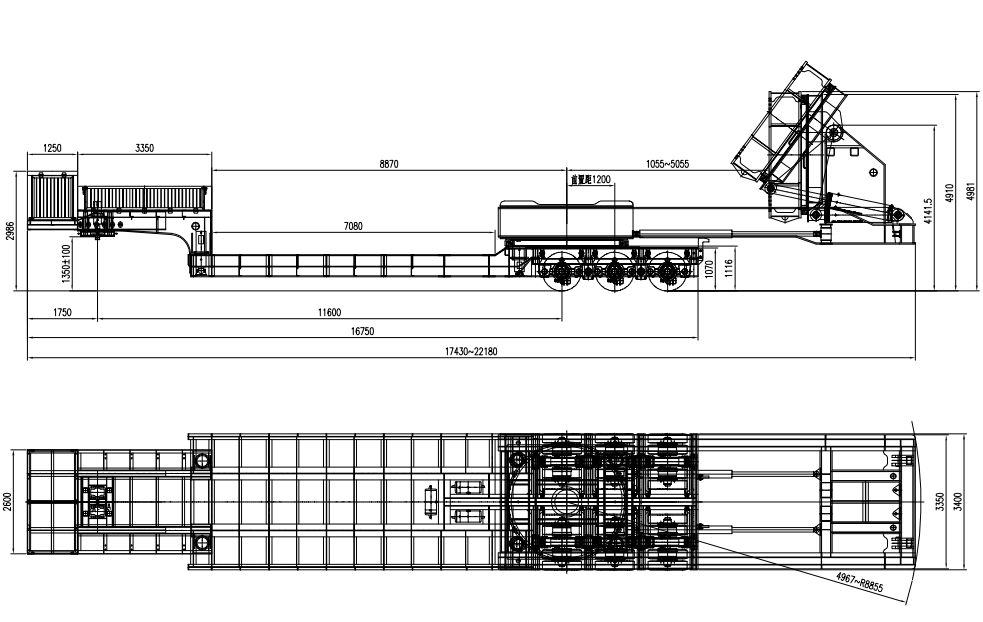

510 ton*meter rotary wind blade trailer |
|
Dead weight |
70,000kg |
|
Trailer part |
|
|
Overall size |
16750*1116*3400mm(Outside distance of tire 3400-4400mm) |
|
Fifth wheel height |
1350±100mm |
|
Payload |
100,000kg |
|
Chassis |
Heavy duty and extra durability designed ; opting for high tensile steel, welded by automatic submerged-Arc process. Middle flange height 900mm.Clearance 350mm. |
|
Wheel base |
11600+1320+1320mm |
|
Landing gear |
Hydraulic landing gear |
|
King pin |
3.5’’ bolt-in king pin. |
|
painting |
Complete chassis sand blasting to clean rust. I coat of anticorrosive prime,2 coats of final paint. |
|
Vehicular applications |
Wind blade transport |
|
suspension |
rigid suspension |
|
Leaf spring |
None |
|
axle |
3 lines 6 axles, 100T |
|
Brake system |
Double line brake system; |
|
Brake chamber |
6 chambers |
|
Tire & rim |
10.00R20 24 units, Giti tires; Zhengxing rim |
|
Wind blade adapter |
|
|
Overall size |
10420*3400*3865mm |
|
Elevation |
0-36°, double lifting cylinder |
|
Rotation |
360° rotary angle, Hydraulic 4WD full rotation |
|
Pitch mode |
360 ° rotary angle, Hydraulic 2WD(4WD optional) full rotation |
|
Extension |
0-4000mm, double pulling cylinder |
|
Weighing |
4-points gravity surveying |
